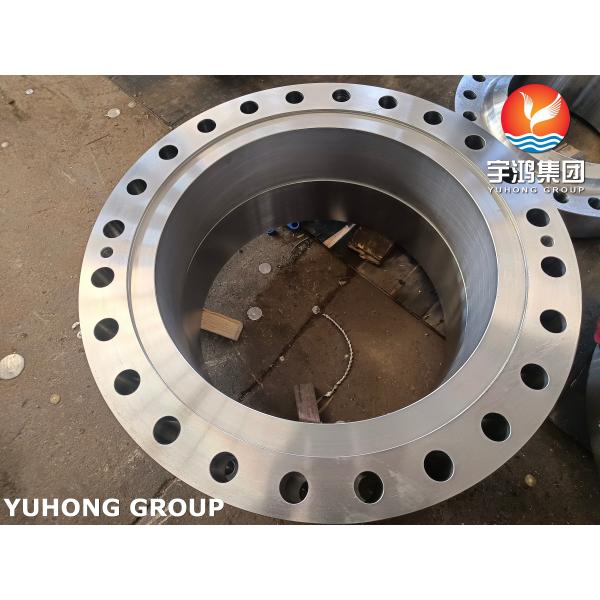

SA266 Grade 2N Carbon Steel Shell Flange for Heat Exchangers ASME Standard

Name: SA266 Grade 2N Carbon Steel Shell Flange for Heat Exchangers ASME Standard
Brand: YUHONG
Price: 1 USD

China SA266 Grade 2N Carbon Steel Shell Flange for Heat Exchangers ASME Standard wholesale

Brand Name : YUHONG

Model Number : Channel Cover Flange

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Place of Origin : CN

MOQ : 1 PC

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 400 Tons/ month

Delivery Time : 5-10 days

Packaging Details : Ply-wooden Case /Iron Case

Name : Channel Cover Flange

Outer diameter : 630MM

Thickness : 105mm

Matrial : ASTM A694, ASTM A105N (SA105N), MSS SP-44, DIN 2533 etc..

Standard : B16.5, B16.34, B16.47,SP44, API 605 etc..

Contact Now

SA266 Grade 2N Carbon Steel Shell Flange for Heat Exchangers ASME Standard

YUHONG specializes in pressure vessels, with an annual production capacity exceeding 6,000 tons. We provide a wide range of products, including film evaporators, heat exchangers, reaction vessels, towers, storage tanks, and filters, available in various specifications and materials.

The Carbon Steel Channel Cover Flange made from ASME SA266 Grade 2N is essential for heat exchanger applications, ensuring durability and efficiency.

Chemical Composition of SA266 Grade 2N

Element	Composition (%)
Carbon	0.15 - 0.22
Manganese	0.50 - 0.90
Phosphorus	≤ 0.030
Sulfur	≤ 0.030
Silicon	0.15 - 0.40
Chromium	≤ 0.25

Mechanical Properties of SA266 Grade 2N

Property	Value
Yield Strength (MPa)	240 - 290
Tensile Strength (MPa)	400 - 520
Elongation (%)	≥ 20

Other Equivalent Grades

Standard	Equivalent Grade
ASTM A266	Grade 2N
ASME SA516	Gr. 70
ASTM A105	Forged Carbon Steel

Types of Flanges for Heat Exchangers

Weld Neck Flange: Provides a strong connection and is ideal for high-pressure applications.
Slip-On Flange: Easier to align and weld, suitable for low-pressure systems.
Blind Flange: Used to seal the end of a piping system, preventing flow.
Socket Weld Flange: Common in high-pressure applications, offering excellent strength.

Conclusion

YUHONG is committed to delivering high-quality pressure vessel components, including the Carbon Steel Channel Cover Flange ASME SA266 Grade 2N, ensuring reliability in your heat exchanger systems.
